Get a specific texture or appearance to have outstanding looks for a product. Additional Abbreviations to Know.
Metals Free Full Text Multi Aspects Optimization Of Process Parameters In Cnc Turning Of Lm 25 Alloy Using The Taguchi Grey Approach Html
The surface finish comparator for milling turning reaming and grinding.
. Yide Casting is a leading iron foundry provide both casting service and machining service equipped with imported advanced machining machines in our machining workshop if you have both casting and machining demands Yide casting is a good choice for you we promise good. Roughness is the most commonly specified aspect of surface finish however before we get into the details Surface. Cover or eliminate surface defects.
The measure of the total space irregularities on the surface metal is known as Surface Roughness. 15 rows Surface finish specification and comparison. It should be noted that the finishing symbols triangle and wave are cancelled from the JIS standard revised in 1994.
The triangle symbols in the document matches those in the drawing. It is a means of altering material surfaces through processes involving adding removing or reshaping the metal surface. Example 63 32 002-4 05 002-4 05 06 60 63 002 lay symbol e roughness sampling length or cutoff rating d.
The main purpose is to help find and identify pieces that have been machined. When no value is shown use 03 inch 08 millimeters. Check out our full list of machining blueprint symbols to help you figure out what it is and what it does.
Surface texture obtained by the removal of material by machining operations like turning drilling milling etc. N1 1 0025 Lapping N2. Machining symbols and Surface finish.
It indicates a surface that requires a material removal process and allowance indicated. Specify in inches or millimeters. Ra is average roughness and its under-estimates surface height variations.
What you are describing is a common but obsolete way to express a grade of machining finish. This symbol has a bar added to the basic symbol and forms a triangle. The purpose of a surface finishing symbol is to visually designate the results of a machining process.
Improve mating properties wear resistance fatigue strength contact stiffness vibration and noise of mechanical parts. Rt Roughness Total. Machining symbols and Surface finish.
Symbols Used In GDT Callouts. However it is not uncommon in machine shops for the term surface finish to be used to describe only surface roughness. CLA Center Line Average.
The surface finishing has 6 impacts for a machined parts. The idea was to represent rough or first machining operation by one triangle triangle symbolizes the turning cutting tool. They are surface roughness waviness and lay.
Two triangles meaning two passes of the tool and hence finer finish. Surface finish is composed of three distinct elements roughness lay and waviness See Figure 1 below. The measurements are usually made along a line running at.
When you search for machining surface finish symbols on your favorite browser you would notice a range of abbreviations. 15 rows Surface finish specification and comparison. Rmax is a roughness parameter that is often used for machining anomalies like scratches and burrs although it may not be as obvious with the Ra surface finish chart.
Finish Symbol N Finish R a μinch R a μm Super finishing. These include Ra Rsk Rq Rku Rz and more. Normally four triangles require a grinding operation and a.
Surface Finish Surface Roughness It S Indications Symbols The model sent to us is a BRO-PG11-18FDE which stands for Black Rain Ordnance-Production Gun 11-with an 18-inch 4572mm barrel and the entire rifle in Flat Dark EarthThe weight of the rifle without sights of any kind and empty is 7 pounds 10 ounces 35 kg. Passband or sampling length and surface texture parameter symbol and value. So the surface indicated by two triangles require finer machining than that with only one triangle.
Surface finish symbols are not the same across. Rz is mean roughness depth and it approximates the size of the most severe surface height variations. These include Ra Rsk Rq Rku Rz and more.
Surface roughness number Ra is expressed in microns. But I cant find anything like the Rs. Machining N9 250 63 N10 500 125 Rough Machining N11.
Added to basic symbol. Ra Rz in most cases. Triangle symbol is a simple way to mark the accuracy grade of machined surface in machining design.
Comparison table of triangular symbols of surface roughness with Ra Rz and Ry. This surface roughness indication method pictorially displays information such as the surface roughness value cutoff value sampling length machining method crease direction symbol and surface waviness on the surface indication symbol as shown below. Normally four triangles require a grinding operation and a roughness of.
Here is a brief introduction to the triangle symbol. Surface Finish consists of waviness lay and roughness but it is common for only roughness to be specified on technical drawings. It has been very much common practice to indicate surface roughness symbols in the drawing.
Of the surface texture symbol but most often it is used with a microinch or micrometer value callout that specifies the roughness of a surface. Ra Roughness Average. A surface finish symbol is a mark found on pieces that have been machined by either turning grinding or boring.
The Symbols are triangles 1 or many side by side the number of triangles indicate degree of roughness Ra. Machine Surface Finish Chart. Pictures of each symbol included.
Right angle to the general direction of tool marks on the. The basic surface finish symbol is a checkmark with. Machining symbols and Surface finish.
Improve corrosion and chemical resistance effectively. Waviness is not used in iso standards. They are units used in measuring surface finish.
Ra Average Surface Roughness. N New ISO Grade Scale Numbers. Figure 1 location of ratings and symbols on surface.
Three 3 major characteristics can define the surface finish. RMS Root Mean Square. Machining symbols and Surface finish.
2
Metals Free Full Text Multi Aspects Optimization Of Process Parameters In Cnc Turning Of Lm 25 Alloy Using The Taguchi Grey Approach Html
Machines Free Full Text Reconfigurable Machine Tool Design For Box Type Part Families Html

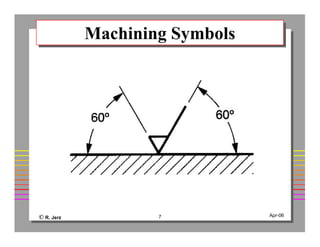

17 Surface Roughness And Machining Symbols Full
